SID212 ECU Remapping for Ford EcoBlue Engines

The Siemens SID212 ECU has quickly become one of the most talked-about engine control units (ECU's) in the Ford tuning world. Found across a wide range of 2.0 EcoBlue-powered vehicles, including the Ford Transit, Transit Custom, Ranger and other diesel models, the Siemens SID212 ECU has historically been one of the most difficult ECUs to tune.

For years, owners of SID212 equipped vehicles had limited tuning options. While ECU remapping itself was always performed via the vehicle’s OBD port, the ECU first had to be removed from the vehicle and sent to a specialist unlock centre before tuning could begin.

This process added time, cost and complexity to SID212 tuning, often leaving vehicles off the road for several days while the ECU was transported, unlocked and returned before the remapping process could begin.

That has now changed. Recent developments mean the SID212 ECU no longer requires a separate unlock process. The ECU can now be remapped directly through the OBD port without removing the ECU or sending it away.

This means SID212 remapping can now be completed on the same day, dramatically reducing downtime for owners of Ford Transit, Transit Custom and Ranger models fitted with the 2.0 EcoBlue engine.

What Is the Siemens SID212 ECU?

The Siemens SID212 ECU is an advanced engine control unit used primarily on Ford’s 2.0 EcoBlue diesel engine platform. It is commonly found in vehicles such as the Ford Transit, Transit Custom, Ranger and selected diesel passenger models.

The SID212 ECU controls key engine functions including fuel delivery, boost pressure, torque management, emissions strategies and overall engine calibration. From a manufacturer point of view, this ECU offers excellent control and security. From a tuning point of view, that same security made it one of the most challenging ECUs to work with.

Because the SID212 ECU is used across such a broad range of Ford vehicles, demand for reliable SID212 remapping has grown rapidly. Owners of working vans, towing vehicles, commercial fleets and private-use EcoBlue models all want the same thing: more usable torque, better drivability and stronger performance.

SID212 ECU Breakthrough: Same-Day OBD Remapping

Historically, tuning the SID212 ECU required the ECU to be removed from the vehicle and sent to a specialist centre for unlocking before the remapping process could begin.

Although the final remap itself was always completed through the OBD port, the unlocking stage created delays and additional complexity for both customers and workshops.

With the latest developments, the SID212 ECU no longer requires this unlock process. The ECU can now be accessed and remapped directly via OBD without removing the ECU from the vehicle.

This means SID212 ECU remapping can now be carried out as a same-day service, making professional tuning far more convenient for Ford EcoBlue owners.

SID212 Tuning Options Explained

We offer a range of proven solutions for SID212 equipped EcoBlue vehicles, depending on your budget, your goals and how much performance you want from the vehicle.

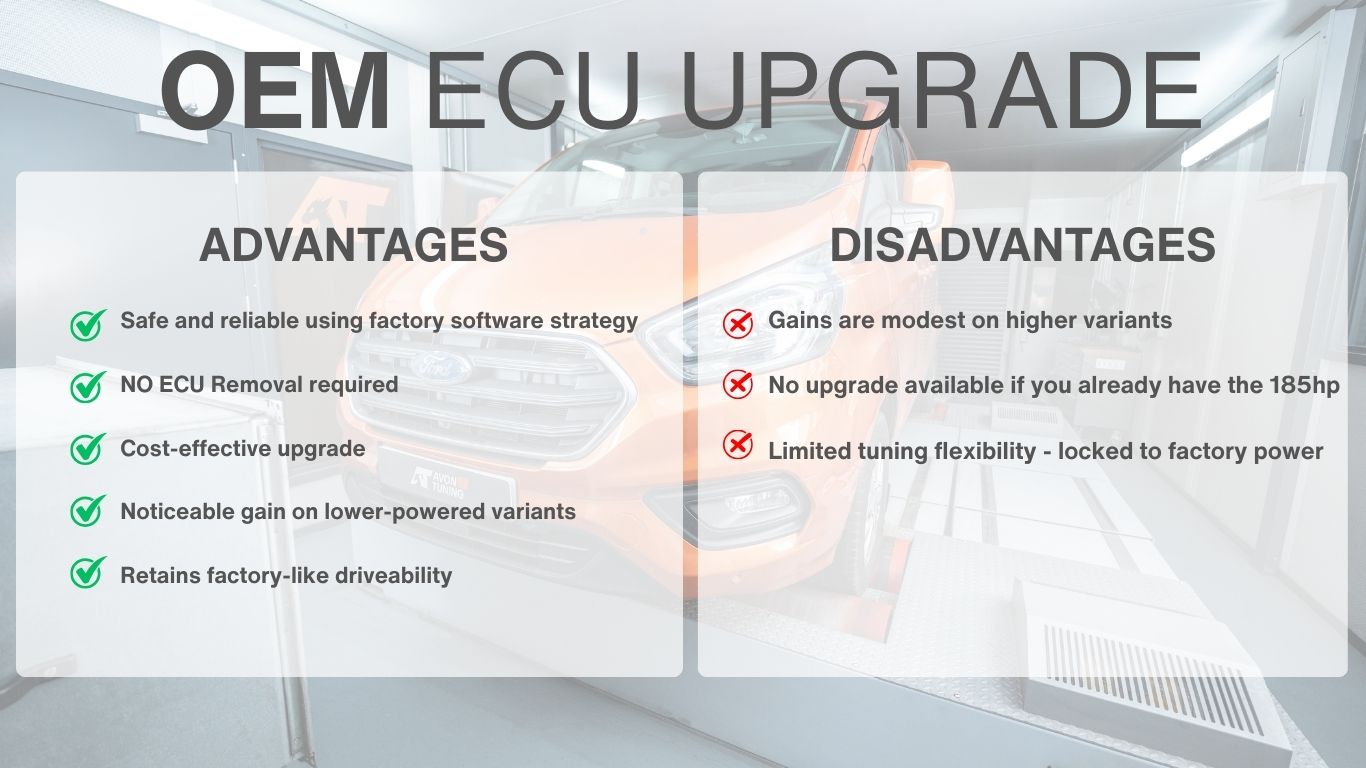

Option 1: OEM ECU Upgrade

Due to the modular design of Ford’s 2.0 EcoBlue engine range, multiple power variants often share the same core hardware. In many cases, lower output vehicles can be safely upgraded using higher factory software variants.

This is an excellent option for owners who want a safe and reliable increase in performance without moving into full aftermarket tuning. It works especially well on lower-powered Ford Transit and Transit Custom models where the gains are immediately noticeable in day-to-day driving.

OEM ECU Upgrade - £249 Inc VAT

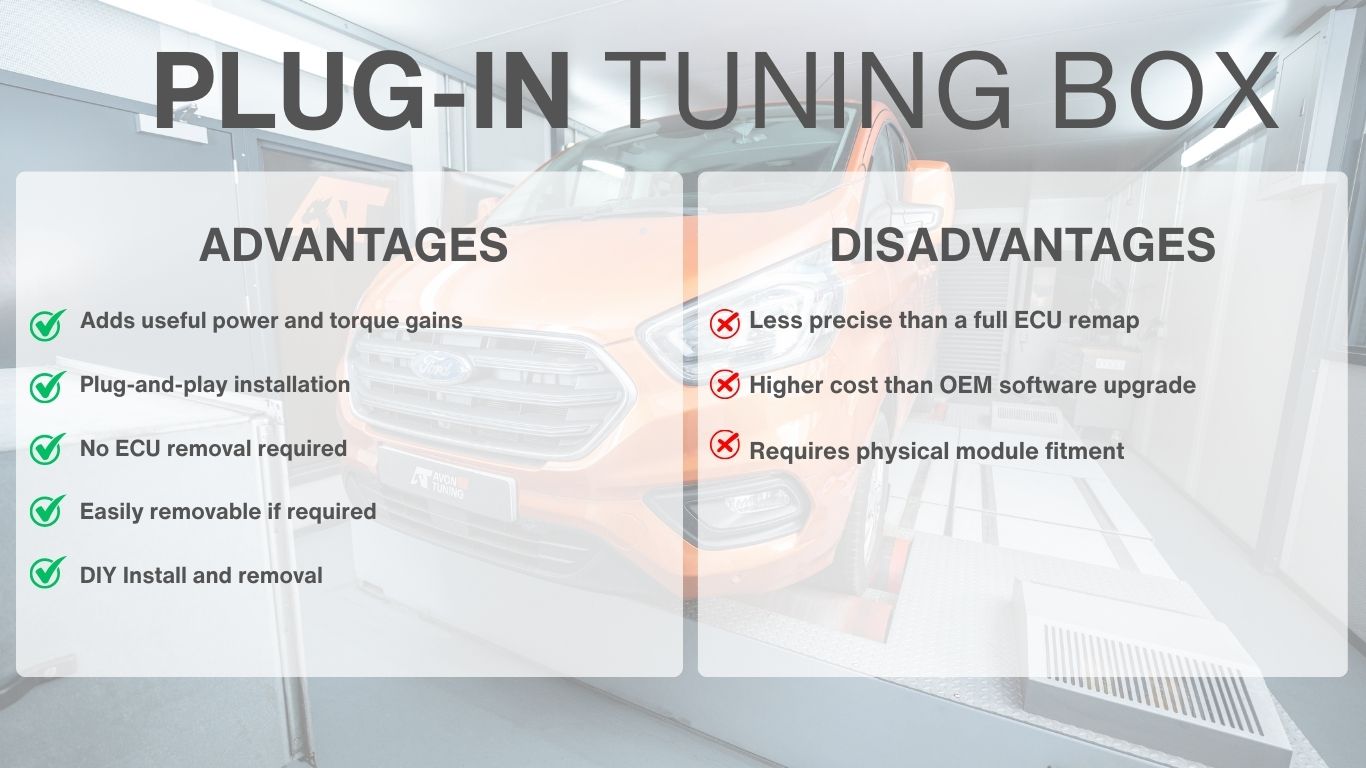

Option 2: Plug-In Tuning Module

For customers wanting more performance than the standard factory upgrade route, a plug-in tuning module remains a strong option. These systems are ideal for customers who want improved power and torque with a reversible installation.

On SID212 equipped Ford EcoBlue vehicles, a quality tuning module can deliver strong gains in performance and drivability, especially when used on lower-powered models. It is also an attractive solution for customers who value easy removal and transferability.

Plug-In Tuning Module - £648 Inc VAT

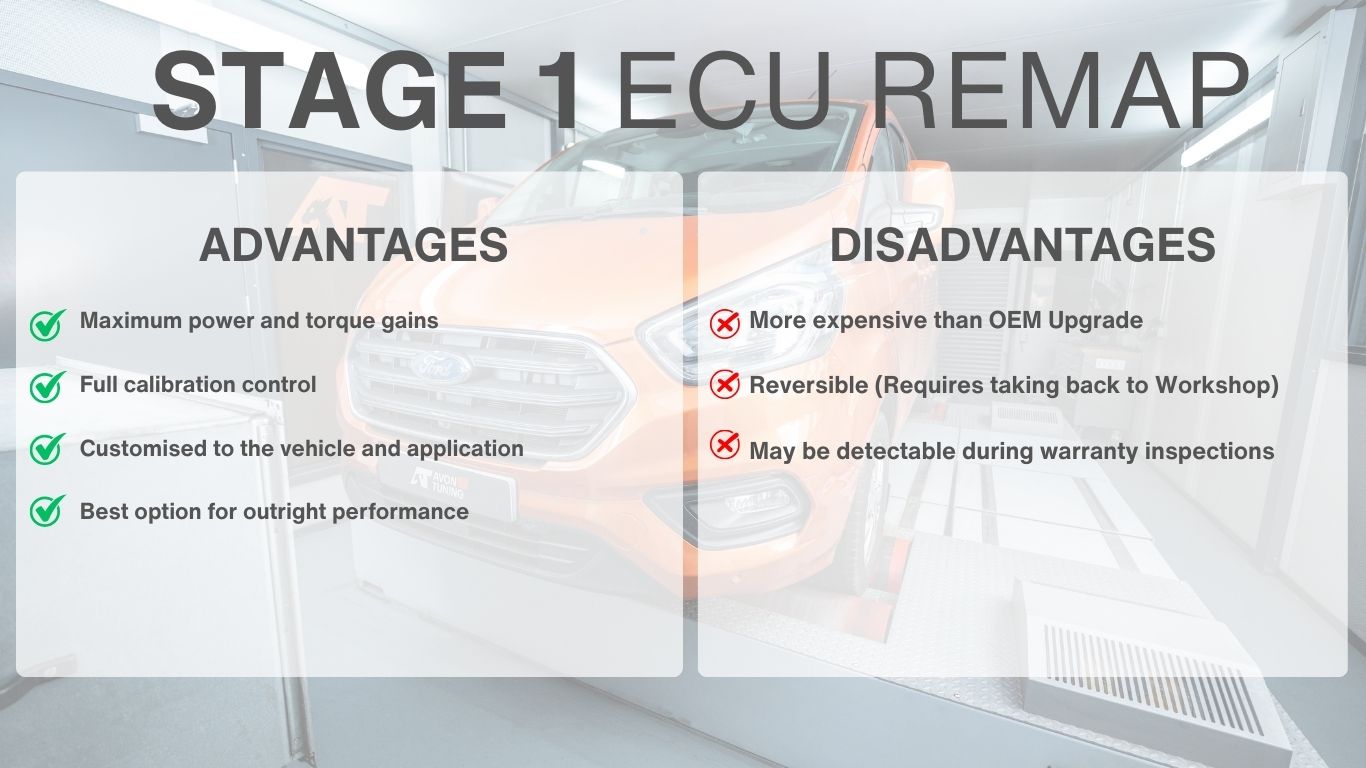

Option 3: Stage 1 SID212 ECU Remap

A proper Stage 1 ECU remap remains the best way to unlock the full potential of the SID212 ECU. With full access to the ECU calibration, we can optimise fuel delivery, boost control, torque limiters and other key strategies to suit the vehicle and its intended use.

Now that the SID212 ECU no longer requires a separate unlock process, Stage 1 ECU remapping can be completed via the OBD port without removing the ECU from the vehicle, allowing the entire tuning process to be completed much faster than before.

Stage 1 Remap - £900 Inc VAT

Stage 1 Performance Example

Stock: 105hp / 360Nm

Stage 1 Tuned: 215hp / 460Nm

SID212 Tuning Options Comparison

*Example figures shown for a 105hp 2.0 EcoBlue variant. Final results depend on model and software version.
